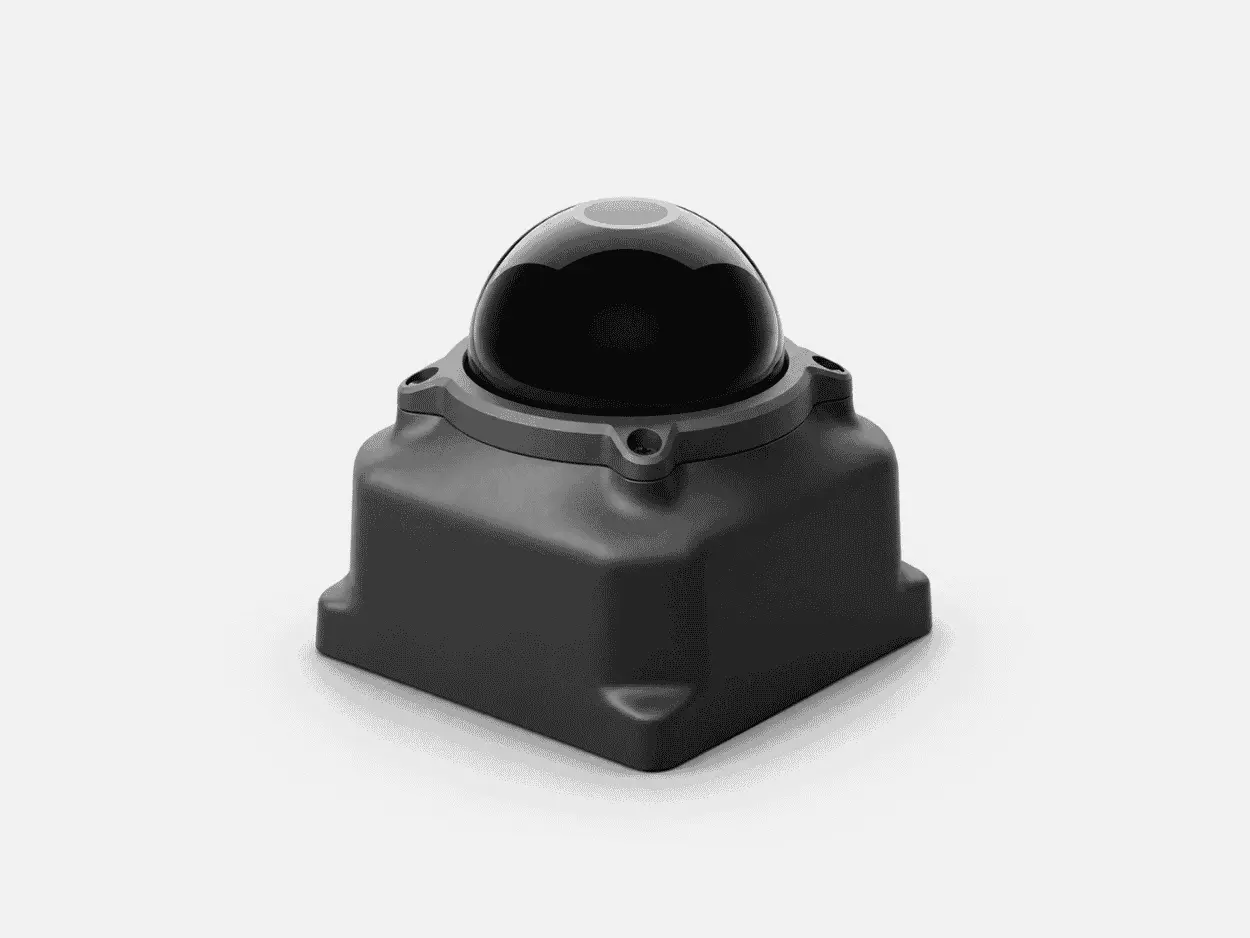

LIVOX MID-360L
The Livox MID-360L is a compact 3D LiDAR sensor featuring 360° horizontal field-of-view coverage and a detection range of up to 45 metres at 10% target reflectivity under specified conditions. With a built-in IMU, IP67-rated protection, and real-time 3D point cloud output, it is designed for mobile robots, autonomous navigation, mapping, localization, and obstacle avoidance in industrial and outdoor environments.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| FOV | 360° × 44° |
| Detection Range | 45 m @ 10% reflectivity (typical), 100 m cut-off range |
| Minimum Detection Range | 0.1 m |
| Point Cloud Rate | 100,000 points/s |
| L × W × H (mm) | 65 × 65 × 63 mm |
| Weight | 245 g |
| Power Supply Voltage Range | 12–27 V DC |
| Operating Temperature | -20°C to +65°C |
| IP Rating | IP67 |
Overview
Livox Mid-360L 3D LiDAR for Robotics, Drones & Autonomous Systems
The Livox MID-360L LiDAR sensor is a compact 3D sensing solution designed for robotics, autonomous systems, and industrial applications. It provides 360° horizontal field-of-view coverage to help machines perceive their surroundings and generate 3D environmental data. Its compact design makes it suitable for integration into mobile robots, autonomous mobile robots (AMRs), unmanned systems, and intelligent automation platforms. The MID-360L supports applications such as obstacle detection, navigation, mapping, and real-time environmental perception, helping developers build reliable perception systems for complex operating environments.
