HyperCore IPC T Series

    Industrial Panel Computer

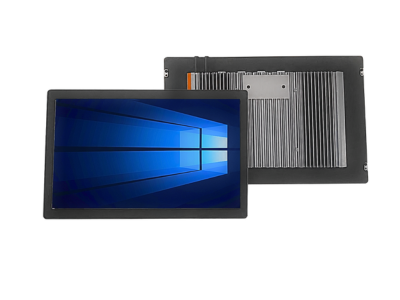

    HyperCore IPC T Series

    HyperCore IPC T Series is a versatile Industrial Panel Computer powered by Intel® Core™ and Intel® Celeron® processors, delivering reliable computing performance for industrial automation, machine vision, smart manufacturing, and Industrial IoT applications. Designed to support a wide range of display sizes and deployment requirements, it enables real-time monitoring, process visualization, and equipment control in industrial environments. Its flexible architecture, rugged construction, and broad application compatibility make it an ideal platform for organizations seeking a scalable and future-ready industrial HMI solution.

    Compatible Modules

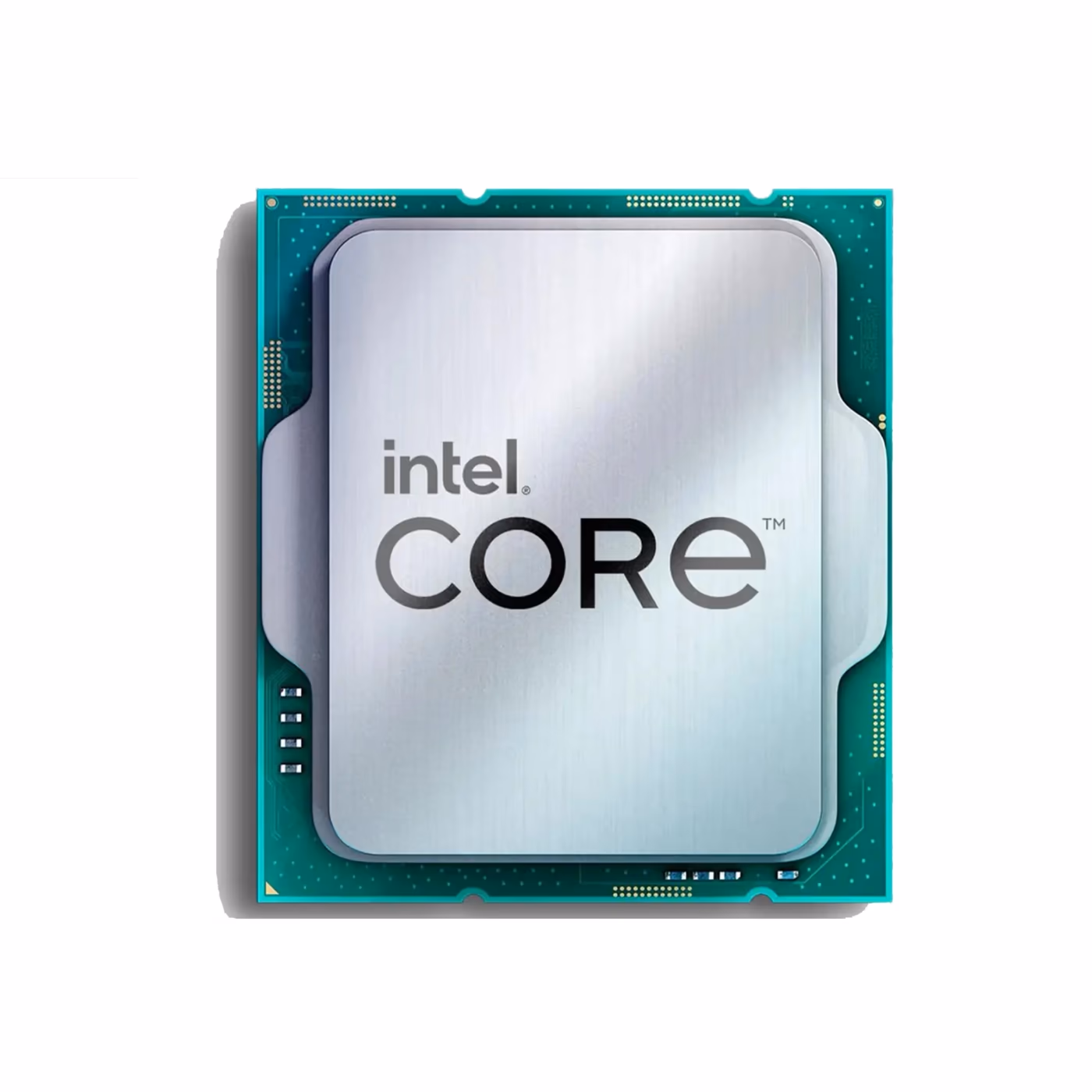

    intel Core®
    intel Core®

    Built for Demanding
    Applications

    The HyperCore IPC T is engineered for versatile industrial computing and intuitive touchscreen interaction across automation syste

    SMART RETAIL & DIGITAL SIGNAGE

    SMART RETAIL & DIGITAL SIGNAGE

    WAREHOUSE AUTOMATION

    WAREHOUSE AUTOMATION

    SMART MANUFACTURING

    SMART MANUFACTURING

    INDUSTRIAL AUTOMATION

    INDUSTRIAL AUTOMATION

    MACHINE VISION INSPECTION

    MACHINE VISION INSPECTION

    INTELLIGENT TRANSPORTATION

    INTELLIGENT TRANSPORTATION

    Specifications

    Technical Specifications

    Compute Module — Intel® Core™ Platform

    Compute Module — Intel® Core™ Platform specifications for HyperCore IPC T Series
    Parameter
    CPUIntel® Core™ 7th Gen i3/i5/i7Intel® Core™ 10th Gen i3/i5/i7Intel® Core™ 12th Gen i3/i5/i7Intel® Celeron J6412
    Memory1× SO-DIMM memory slot, supports DDR3L/DDR3 SO-DIMM slot (Up to 32GB)2× SO-DIMM memory slots, supporting DDR4 SO-DIMM slots (Dual-Channel, Up to 64GB)2× SO-DIMM memory slots, supporting DDR4 SO-DIMM slots (Dual-Channel, Up to 64GB)1× SO-DIMM memory slot, supports DDR4 SO-DIMM slot (Up to 32GB)
    Storage1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports SATA SSDs)
    Operating SystemWindows 10 | Windows 11 | Linux operating system
    LCD Screen TypeIndustrial-grade LCD monitor (LED back light)
    Backlight Lifespan30,000 hours (min.)

    Touchscreen Specifications

    Touchscreen Specifications specifications for HyperCore IPC T Series
    InterfaceSpecification
    Touchscreen TypeProjected capacitive touch, 10 Point Touch
    Control methodUSB interface
    Light transmittanceMore than 80%

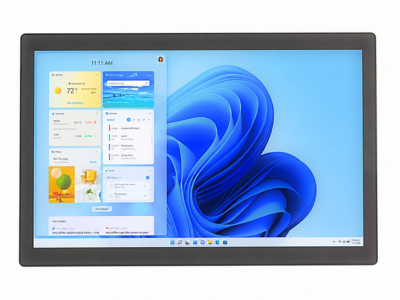

    LCD Screen Specifications

    LCD Screen Specifications specifications for HyperCore IPC T Series
    ModelScreen SizeResolutionBrightnessContrast RatioViewing Angle Type.(CR≥10)Front Panel Dimensions (mm)Rare Panel Cutout (mm)
    HyperCore IPC T10110.1"1280×800350 nits800:185/85/85/85259.30 × 178.30172.70 × 253.70
    HyperCore IPC T10410.4"1024×768500 nits1200:185/85/85/85259.30 × 206.50253.70 × 200.90
    HyperCore IPC T12112.1"1024×768350 nits1200:189/89/89/89296.30 × 233.30290.70 × 227.70
    HyperCore IPC T13313.3"1920×1080300 nits1200:185/85/85/85330.30 × 206.30324.70 × 200.70
    HyperCore IPC T15015.0"1024×768450 nits1000:189/89/89/89354.30 × 278.80348.70 × 273.20
    HyperCore IPC T15615.6"1920×1080250 nits3000:189/89/89/89377.30 × 233.80371.70 × 228.20
    HyperCore IPC T17017.0"1280×1024250 nits1000:189/89/89/89389.30 × 324.30383.70 × 318.70
    HyperCore IPC T19019.0"1280×1024250 nits1000:189/89/89/89426.80 × 355.30421.20 × 349.70
    HyperCore IPC T21521.5"1920×1080250 nits3000:189/89/89/89524.30 × 322.30518.70 × 316.70

    I/O Interfaces

    I/O Interfaces specifications for HyperCore IPC T Series
    InterfaceSpecification
    Ethernet2× RTL8111H Gigabit Ethernet Ports and Wake-on-LAN/ PXE supported
    USB2× USB 2.0 ports, 4× USB 3.0 ports
    Serial Ports6× COM (COM1/COM2 optional RS-232/RS-485; COM3–COM6 are RS-232)
    GPIO8× GPIO (providing digital input and output)
    CMOS1× CMOS Clear button (can clear BIOS settings and restore to factory default state)
    Video Output1× HDMI
    Audio1× Audio/Video Combination Interface
    Watchdog255-level programmable seconds/minute, supports timeout interrupts or system reset
    Speakerupto 2× 8Ω 2W

    Expansion & Storage

    Expansion & Storage specifications for HyperCore IPC T Series
    SlotSpecification
    Mini PCIe1× Mini PCI Express socket for 4G cellular module, with SIM socket
    M.2 Key E1× M.2 2230 Key E socket for Wi-Fi/ Bluetooth module
    M.2 Key M1× M.2 2280 Key M socket for NVMe/SATA SSD
    SO-DIMM1× DDR3/DDR3L/DDR4 SO-DIMM RAM

    Power & Control

    Power & Control specifications for HyperCore IPC T Series
    ParameterSpecification
    Power Input1× 2-PIN Phoenix connector, supports 12V voltage input, optional 9-36V wide voltage input.
    Buttons1× Power-on automatic start switch (manual toggle) with indicator light

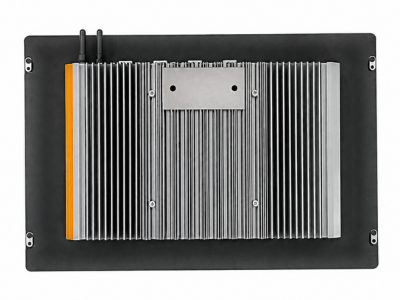

    Mechanical

    Mechanical specifications for HyperCore IPC T Series
    ParameterSpecification
    MountingIntegrated Wall Mounting Bracket
    EnclosureRugged Aluminium Alloy
    InstallSupports VESA installation/ embedded panel installation

    Environmental

    Environmental specifications for HyperCore IPC T Series
    ParameterSpecification
    Operating Temperature-5°C to 60°C
    Humidity5% – 95% non-condensing
    Storage Temperature-20°C to 75°C

    Package Contents & Accessories

    Package Contents & Accessories specifications for HyperCore IPC T Series
    Packing List
    Main UnitHyperCore M300
    Terminal ConnectorDFMC 1,5/7-ST-3,5 Phoenix Terminal
    MountingScrews for Integrated Wall-Mount Brackets
    Standard Accessories
    Power AdapterMeanwell GST 90W AC-DC Power Adaptor (12V, 7.5A)
    Power Cable
    • 1. EU1-MC13 1.8M Universal Power Cable
    • 2. DC Plug P1MF to Locking Phoenix-2 Female converter
    Optional Accessories
    Wi‑Fi Module
    • 1. Wireless AW-CB375NF NIC, Dual-Band Wi-Fi 5, BT 5.0
    • 2. Wireless AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, BT 5.3
    4G LTE ModuleQuectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module
    Wi‑Fi Antenna2.4GHz - 5GHz 5dBi Omni Wi-Fi Antenna with SMA Connector
    4G Antenna600-6000MHz 5dBi Omni 4G Antenna with SMA Connector
    StorageNVMe/SATA 2280 M.2 SSD 128GB /256GB /512GB /1TB /2TB /4TB
    MemoryDDR3L/DDR3/DDR4 SO-DIMM RAM — 4GB/ 8GB/ 16GB/ 32GB

    Ordering Information

    Ordering Information specifications for HyperCore IPC T Series
    VariantSystem CoreModel NumberAction
    HyperCore IPC T101Intel Celeron J6412HCIPCT101J6412
    HyperCore IPC T101Intel Core i3 7th GenHCIPCT101G7I3
    HyperCore IPC T101Intel Core i5 7th GenHCIPCT101G7I5
    HyperCore IPC T101Intel Core i7 7th GenHCIPCT101G7I7
    HyperCore IPC T101Intel Core i3 10th GenHCIPCT101G10I3
    HyperCore IPC T101Intel Core i5 10th GenHCIPCT101G10I5
    HyperCore IPC T101Intel Core i7 10th GenHCIPCT101G10I7
    HyperCore IPC T101Intel Core i3 12th GenHCIPCT101G12I3
    HyperCore IPC T101Intel Core i5 12th GenHCIPCT101G12I5
    HyperCore IPC T101Intel Core i7 12th GenHCIPCT101G12I7
    HyperCore IPC T104Intel Celeron J6412HCIPCT104J6412
    HyperCore IPC T104Intel Core i3 7th GenHCIPCT104G7I3
    HyperCore IPC T104Intel Core i5 7th GenHCIPCT104G7I5
    HyperCore IPC T104Intel Core i7 7th GenHCIPCT104G7I7
    HyperCore IPC T104Intel Core i3 10th GenHCIPCT104G10I3
    HyperCore IPC T104Intel Core i5 10th GenHCIPCT104G10I5
    HyperCore IPC T104Intel Core i7 10th GenHCIPCT104G10I7
    HyperCore IPC T104Intel Core i3 12th GenHCIPCT104G12I3
    HyperCore IPC T104Intel Core i5 12th GenHCIPCT104G12I5
    HyperCore IPC T104Intel Core i7 12th GenHCIPCT104G12I7
    HyperCore IPC T121Intel Celeron J6412HCIPCT121J6412
    HyperCore IPC T121Intel Core i3 7th GenHCIPCT121G7I3
    HyperCore IPC T121Intel Core i5 7th GenHCIPCT121G7I5
    HyperCore IPC T121Intel Core i7 7th GenHCIPCT121G7I7
    HyperCore IPC T121Intel Core i3 10th GenHCIPCT121G10I3
    HyperCore IPC T121Intel Core i5 10th GenHCIPCT121G10I5
    HyperCore IPC T121Intel Core i7 10th GenHCIPCT121G10I7
    HyperCore IPC T121Intel Core i3 12th GenHCIPCT121G12I3
    HyperCore IPC T121Intel Core i5 12th GenHCIPCT121G12I5
    HyperCore IPC T121Intel Core i7 12th GenHCIPCT121G12I7
    HyperCore IPC T133Intel Celeron J6412HCIPCT133J6412
    HyperCore IPC T133Intel Core i3 7th GenHCIPCT133G7I3
    HyperCore IPC T133Intel Core i5 7th GenHCIPCT133G7I5
    HyperCore IPC T133Intel Core i7 7th GenHCIPCT133G7I7
    HyperCore IPC T133Intel Core i3 10th GenHCIPCT133G10I3
    HyperCore IPC T133Intel Core i5 10th GenHCIPCT133G10I5
    HyperCore IPC T133Intel Core i7 10th GenHCIPCT133G10I7
    HyperCore IPC T133Intel Core i3 12th GenHCIPCT133G12I3
    HyperCore IPC T133Intel Core i5 12th GenHCIPCT133G12I5
    HyperCore IPC T133Intel Core i7 12th GenHCIPCT133G12I7
    HyperCore IPC T170Intel Celeron J6412HCIPCT170J6412
    HyperCore IPC T170Intel Core i3 7th GenHCIPCT170G7I3
    HyperCore IPC T170Intel Core i5 7th GenHCIPCT170G7I5
    HyperCore IPC T170Intel Core i7 7th GenHCIPCT170G7I7
    HyperCore IPC T170Intel Core i3 10th GenHCIPCT170G10I3
    HyperCore IPC T170Intel Core i5 10th GenHCIPCT170G10I5
    HyperCore IPC T170Intel Core i7 10th GenHCIPCT170G10I7
    HyperCore IPC T170Intel Core i3 12th GenHCIPCT170G12I3
    HyperCore IPC T170Intel Core i5 12th GenHCIPCT170G12I5
    HyperCore IPC T170Intel Core i7 12th GenHCIPCT170G12I7
    HyperCore IPC T190Intel Celeron J6412HCIPCT190J6412
    HyperCore IPC T190Intel Core i3 7th GenHCIPCT190G7I3
    HyperCore IPC T190Intel Core i5 7th GenHCIPCT190G7I5
    HyperCore IPC T190Intel Core i7 7th GenHCIPCT190G7I7
    HyperCore IPC T190Intel Core i3 10th GenHCIPCT190G10I3
    HyperCore IPC T190Intel Core i5 10th GenHCIPCT190G10I5
    HyperCore IPC T190Intel Core i7 10th GenHCIPCT190G10I7
    HyperCore IPC T190Intel Core i3 12th GenHCIPCT190G12I3
    HyperCore IPC T190Intel Core i5 12th GenHCIPCT190G12I5
    HyperCore IPC T190Intel Core i7 12th GenHCIPCT190G12I7
    HyperCore IPC T215Intel Celeron J6412HCIPCT215J6412
    HyperCore IPC T215Intel Core i3 7th GenHCIPCT215G7I3
    HyperCore IPC T215Intel Core i5 7th GenHCIPCT215G7I5
    HyperCore IPC T215Intel Core i7 7th GenHCIPCT215G7I7
    HyperCore IPC T215Intel Core i3 10th GenHCIPCT215G10I3
    HyperCore IPC T215Intel Core i5 10th GenHCIPCT215G10I5
    HyperCore IPC T215Intel Core i7 10th GenHCIPCT215G10I7
    HyperCore IPC T215Intel Core i3 12th GenHCIPCT215G12I3
    HyperCore IPC T215Intel Core i5 12th GenHCIPCT215G12I5
    HyperCore IPC T215Intel Core i7 12th GenHCIPCT215G12I7
