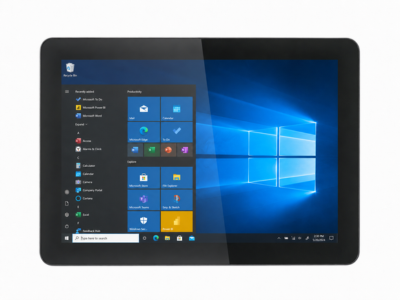

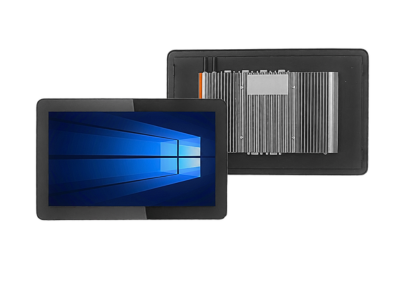

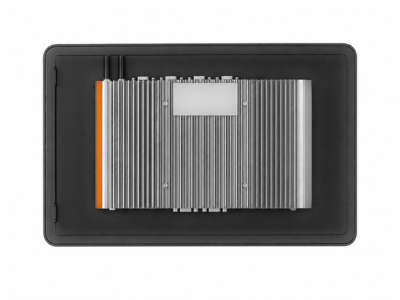

HyperCore IPC G Series

    Industrial Panel Computer

    HyperCore IPC G Series

    HyperCore IPC G Series is a high-performance Industrial Panel Computer powered by Intel® Core™ and Intel® Celeron® processors, designed for smart manufacturing, production monitoring, machine vision, and industrial visualization applications. Featuring large-format Full HD touchscreen displays, it enables real-time process monitoring, operational analytics, and centralized equipment management. Its rugged fanless design and industrial reliability make it an ideal platform for control rooms, manufacturing dashboards, digital factory initiatives, and other applications requiring enhanced visualization and continuous operation.

    Compatible Modules
    intel Core®
    intel Core®

    Built for Demanding
    Applications

    The HyperCore IPC G is engineered for large-format visualization, centralized monitoring, and industrial control applications.

    SMART RETAIL & DIGITAL SIGNAGE

    SMART RETAIL & DIGITAL SIGNAGE

    WAREHOUSE AUTOMATION

    WAREHOUSE AUTOMATION

    SMART MANUFACTURING

    SMART MANUFACTURING

    INDUSTRIAL AUTOMATION

    INDUSTRIAL AUTOMATION

    MACHINE VISION INSPECTION

    MACHINE VISION INSPECTION

    INTELLIGENT TRANSPORTATION

    INTELLIGENT TRANSPORTATION

    Specifications

    Technical Specifications

    Compute Module — Intel® Core™ Platform

    Compute Module — Intel® Core™ Platform specifications for HyperCore IPC G Series
    Parameter
    CPUIntel® Core™ 7th Gen i3/i5/i7Intel® Core™ 10th Gen i3/i5/i7Intel® Core™ 12th Gen i3/i5/i7Intel® Celeron J6412
    Memory1× SO-DIMM memory slot, supports DDR3L/DDR3 SO-DIMM slot (Up to 32GB)2× SO-DIMM memory slots, supporting DDR4 SO-DIMM slots (Dual-Channel, Up to 64GB)2× SO-DIMM memory slots, supporting DDR4 SO-DIMM slots (Dual-Channel, Up to 64GB)1× SO-DIMM memory slot, supports DDR4 SO-DIMM slot (Up to 32GB)
    Storage1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports SATA SSDs)
    Operating SystemWindows 10 | Windows 11 | Linux operating system
    LCD Screen TypeIndustrial-grade LCD monitor (LED back light)
    Backlight Lifespan30,000 hours (min.)

    Touchscreen Specification

    Touchscreen Specification specifications for HyperCore IPC G Series
    InterfaceSpecification
    Touchscreen TypeProjected capacitive touch, 10 Point Touch
    Control methodUSB Interface
    Light transmittanceMore than 80%

    Lcd Screen Specification

    Lcd Screen Specification specifications for HyperCore IPC G Series
    ModelScreen SizeResolutionBrightnessContrast RatioViewing Angle Typ.(CR≥10)Front Panel Dimensions (mm)Rare Panel Cutout (mm)
    HyperCore IPC G13313.3"1920×1080300 nits1200:185/85/85/85346.40 × 224.40324.50 × 198.50
    HyperCore IPC G15615.6"1920×1080250 nits3000:189/89/89/89400.40 × 254.40374.50 × 224.50
    HyperCore IPC G18518.5"1920×1080250 nits1000:189/89/89/89462.40 × 286.40441.30 × 261.30
    HyperCore IPC G21521.5"1920×1080250 nits3000:189/89/89/89526.90 × 322.40506.80 × 298.30
    HyperCore IPC G23623.6"1920×1080250 nits3000:189/89/89/89578.90 × 353.90557.60 × 328.60
    HyperCore IPC G27027.0"1920×1080250 nits1000:189/89/89/89663.90 × 402.90641.60 × 376.60

    I/O Interfaces

    I/O Interfaces specifications for HyperCore IPC G Series
    InterfaceSpecification
    Ethernet2× RTL8111H Gigabit Ethernet Ports and Wake-on-LAN /PXE supported
    USB2× USB 2.0 ports, 4× USB 3.0 ports
    Serial Ports6× COM (COM1/COM2 optional RS-232/RS-485, COM3 - COM6 are RS-232)
    GPIO8× GPIO (providing digital input and output)
    CMOS1× CMOS Clear button (can clear BIOS settings and restore to factory default state)
    Video Output1× HDMI
    Audio1× Audio/Video Combination Interface
    Watchdog255-level programmable seconds/minute, supports timeout interrupts or system reset
    SpeakerUp to 2x 8Ω 2W

    Expansion & Storage

    Expansion & Storage specifications for HyperCore IPC G Series
    SlotSpecification
    Mini PCIe1× Mini PCI Express socket for 4G cellular module, with SIM socket
    M.2 Key E1× M.2 2230 Key E socket for Wi-Fi /Bluetooth module
    M.2 Key M1× M.2 2280 Key M socket for NVMe/SATA SSD
    SO-DIMM1× DDR3/DDR3L/DDR4 SO-DIMM RAM

    Power & Control

    Power & Control specifications for HyperCore IPC G Series
    ParameterSpecification
    Power Input1× 2-PIN Phoenix terminal, supports 12V voltage input, optional 9–36V wide voltage input.
    Buttons1× Push button switch with indicator light

    MECHANICAL & Environmental

    MECHANICAL & Environmental specifications for HyperCore IPC G Series
    ParameterSpecification
    MountingIntegrated Wall Mounting Bracket
    EnclosureRugged Aluminium Alloy
    InstallSupports VESA installation /embedded panel installation

    Environmental

    Environmental specifications for HyperCore IPC G Series
    ParameterSpecification
    Operating Temperature-5°C to +60°C
    Humidity5% – 95% non-condensing
    Storage Temperature-20°C to +75°C

    Package Contents & Accessories

    Package Contents & Accessories specifications for HyperCore IPC G Series
    Packing List
    Main UnitHyperCore M300
    Terminal ConnectorDFMC 1,5/7-ST-3,5 Phoenix Terminal
    MountingScrews for Integrated Wall-Mount Brackets
    Standard Accessories
    Power AdapterMeanwell GST 90W AC-DC Power Adaptor (12V, 7.5A)
    Power Cable
    • 1. EU1-MC13 1.8M Universal Power Cable
    • 2. DC Plug P1MF to Locking Phoenix-2 Female converter
    Optional Accessories
    Wi‑Fi Module
    • 1. Wireless AW-CB375NF NIC, Dual-Band Wi-Fi 5, BT 5.0
    • 2. Wireless AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, BT 5.3
    4G LTE ModuleQuectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module
    Wi‑Fi Antenna2.4GHz - 5GHz 5dBi Omni Wi-Fi Antenna with SMA Connector
    4G Antenna600-6000MHz 5dBi Omni 4G Antenna with SMA Connector
    StorageNVMe/SATA 2280 M.2 SSD 128GB /256GB /512GB /1TB /2TB /4TB
    MemoryDDR3L/DDR3/DDR4 SO-DIMM RAM — 4GB/ 8GB/ 16GB/ 32GB

    Ordering Information

    Ordering Information specifications for HyperCore IPC G Series
    VariantSystem CoreModel NumberAction
    HyperCore IPC G133Intel Celeron J6412HCIPCG133J6412
    HyperCore IPC G133Intel Core i3 7th GenHCIPCG133G7I3
    HyperCore IPC G133Intel Core i5 7th GenHCIPCG133G7I5
    HyperCore IPC G133Intel Core i7 7th GenHCIPCG133G7I7
    HyperCore IPC G133Intel Core i3 10th GenHCIPCG133G10I3
    HyperCore IPC G133Intel Core i5 10th GenHCIPCG133G10I5
    HyperCore IPC G133Intel Core i7 10th GenHCIPCG133G10I7
    HyperCore IPC G133Intel Core i3 12th GenHCIPCG133G12I3
    HyperCore IPC G133Intel Core i5 12th GenHCIPCG133G12I5
    HyperCore IPC G133Intel Core i7 12th GenHCIPCG133G12I7
    HyperCore IPC G156Intel Celeron J6412HCIPCG156J6412
    HyperCore IPC G156Intel Core i3 7th GenHCIPCG156G7I3
    HyperCore IPC G156Intel Core i5 7th GenHCIPCG156G7I5
    HyperCore IPC G156Intel Core i7 7th GenHCIPCG156G7I7
    HyperCore IPC G156Intel Core i3 10th GenHCIPCG156G10I3
    HyperCore IPC G156Intel Core i5 10th GenHCIPCG156G10I5
    HyperCore IPC G156Intel Core i7 10th GenHCIPCG156G10I7
    HyperCore IPC G156Intel Core i3 12th GenHCIPCG156G12I3
    HyperCore IPC G156Intel Core i5 12th GenHCIPCG156G12I5
    HyperCore IPC G156Intel Core i7 12th GenHCIPCG156G12I7
    HyperCore IPC G185Intel Celeron J6412HCIPCG185J6412
    HyperCore IPC G185Intel Core i3 7th GenHCIPCG185G7I3
    HyperCore IPC G185Intel Core i5 7th GenHCIPCG185G7I5
    HyperCore IPC G185Intel Core i7 7th GenHCIPCG185G7I7
    HyperCore IPC G185Intel Core i3 10th GenHCIPCG185G10I3
    HyperCore IPC G185Intel Core i5 10th GenHCIPCG185G10I5
    HyperCore IPC G185Intel Core i7 10th GenHCIPCG185G10I7
    HyperCore IPC G185Intel Core i3 12th GenHCIPCG185G12I3
    HyperCore IPC G185Intel Core i5 12th GenHCIPCG185G12I5
    HyperCore IPC G185Intel Core i7 12th GenHCIPCG185G12I7
    HyperCore IPC G215Intel Celeron J6412HCIPCG215J6412
    HyperCore IPC G215Intel Core i3 7th GenHCIPCG215G7I3
    HyperCore IPC G215Intel Core i5 7th GenHCIPCG215G7I5
    HyperCore IPC G215Intel Core i7 7th GenHCIPCG215G7I7
    HyperCore IPC G215Intel Core i3 10th GenHCIPCG215G10I3
    HyperCore IPC G215Intel Core i5 10th GenHCIPCG215G10I5
    HyperCore IPC G215Intel Core i7 10th GenHCIPCG215G10I7
    HyperCore IPC G215Intel Core i3 12th GenHCIPCG215G12I3
    HyperCore IPC G215Intel Core i5 12th GenHCIPCG215G12I5
    HyperCore IPC G215Intel Core i7 12th GenHCIPCG215G12I7
    HyperCore IPC G236Intel Celeron J6412HCIPCG236J6412
    HyperCore IPC G236Intel Core i3 7th GenHCIPCG236G7I3
    HyperCore IPC G236Intel Core i5 7th GenHCIPCG236G7I5
    HyperCore IPC G236Intel Core i7 7th GenHCIPCG236G7I7
    HyperCore IPC G236Intel Core i3 10th GenHCIPCG236G10I3
    HyperCore IPC G236Intel Core i5 10th GenHCIPCG236G10I5
    HyperCore IPC G236Intel Core i7 10th GenHCIPCG236G10I7
    HyperCore IPC G236Intel Core i3 12th GenHCIPCG236G12I3
    HyperCore IPC G236Intel Core i5 12th GenHCIPCG236G12I5
    HyperCore IPC G236Intel Core i7 12th GenHCIPCG236G12I7
    HyperCore IPC G270Intel Celeron J6412HCIPCG270J6412
    HyperCore IPC G270Intel Core i3 7th GenHCIPCG270G7I3
    HyperCore IPC G270Intel Core i5 7th GenHCIPCG270G7I5
    HyperCore IPC G270Intel Core i7 7th GenHCIPCG270G7I7
    HyperCore IPC G270Intel Core i3 10th GenHCIPCG270G10I3
    HyperCore IPC G270Intel Core i5 10th GenHCIPCG270G10I5
    HyperCore IPC G270Intel Core i7 10th GenHCIPCG270G10I7
    HyperCore IPC G270Intel Core i3 12th GenHCIPCG270G12I3
    HyperCore IPC G270Intel Core i5 12th GenHCIPCG270G12I5
    HyperCore IPC G270Intel Core i7 12th GenHCIPCG270G12I7
