HyperCore IPC S Series

    Industrial Panel Computer

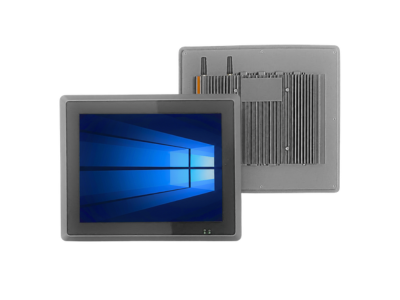

    HyperCore IPC S Series

    HyperCore IPC S Series is a rugged Industrial Panel Computer powered by Intel® Core™ and Intel® Celeron® processors, designed for HMI, industrial automation, machine monitoring, and SCADA applications. Built for reliable operation in demanding environments, it combines responsive touchscreen interaction with industrial-grade computing performance for real-time control and visualization. With support for traditional industrial display formats and flexible installation options, the HyperCore IPC S Series is an ideal solution for modernizing legacy systems and deploying reliable operator interfaces across manufacturing and process automation environments.

    Compatible Modules
    intel Core®
    intel Core®

    Built for Demanding
    Applications

    The HyperCore IPC S is engineered for reliable HMI operation and industrial process visualization in demanding environments.

    SMART RETAIL & DIGITAL SIGNAGE

    SMART RETAIL & DIGITAL SIGNAGE

    WAREHOUSE AUTOMATION

    WAREHOUSE AUTOMATION

    SMART MANUFACTURING

    SMART MANUFACTURING

    INDUSTRIAL AUTOMATION

    INDUSTRIAL AUTOMATION

    MACHINE VISION INSPECTION

    MACHINE VISION INSPECTION

    INTELLIGENT TRANSPORTATION

    INTELLIGENT TRANSPORTATION

    Specifications

    Technical Specifications

    Compute Module — Intel® Core™ Platform

    Compute Module — Intel® Core™ Platform specifications for HyperCore IPC S Series
    Parameter
    CPUIntel® Core™ 7th Gen i3/i5/i7Intel® Core™ 10th Gen i3/i5/i7Intel® Core™ 12th Gen i3/i5/i7Intel® Celeron J6412
    Memory1× SO-DIMM Memory slot, supports DDR3L/DDR3 SO-DIMM Memory slot (Up to 32GB)2× SO-DIMM Memory slot, supports DDR3L/DDR3 SO-DIMM Memory slot (Dual-Channel Up to 64GB)2× SO-DIMM Memory slot, supports DDR3L/DDR3 SO-DIMM Memory slot (Dual-Channel Up to 64GB)1× SO-DIMM Memory slot, supports DDR4 SO-DIMM Memory slot (Up to 32GB)
    Storage1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports NVMe SSD adaptive)1× M.2 2280 Key-M slot (supports SATA SSD)
    Operating SystemWindows 10 | Windows 11 | Linux operating system
    LCD Screen TypeIndustrial-grade LCD monitor (LED backlight)
    Backlight Lifespan30,000 hours (min.)

    Touchscreen Specifications

    Touchscreen Specifications specifications for HyperCore IPC S Series
    InterfaceSpecification
    Touchscreen TypeProjected capacitive touch, 10 Touch Points
    Control MethodUSB Interface
    Light TransmittanceMore than 80%

    LCD Screen Specifications

    LCD Screen Specifications specifications for HyperCore IPC S Series
    ModelScreen SizeResolutionBrightnessContrast RatioViewing Angle Type (CR≥10)Front Panel Dimensions (mm)Rear Panel Cutout (mm)
    HyperCore IPC S10410.4"1024 × 768500 nits1200:185/85/85/85281 × 228286 × 213
    HyperCore IPC S12112.1"1024 × 768350 nits1200:189/89/89/89314.90 × 253.70301.90 × 240.70
    HyperCore IPC S15015.0"1024 × 768450 nits1000:189/89/89/89370 × 294357 × 281
    HyperCore IPC S17017.0"1280 × 1024250 nits1000:189/89/89/89404 × 341390 × 322
    HyperCore IPC S19019.0"1280 × 1024250 nits1000:189/89/89/89445 × 375431 × 356

    I/O Interfaces

    I/O Interfaces specifications for HyperCore IPC S Series
    InterfaceSpecification
    Ethernet2× RTL8111H Gigabit Ethernet Ports and Wake-on-LAN /PXE supported
    USB2× USB 2.0 ports, 4× USB 3.0 ports
    Serial Ports6× COM (COM1/COM2 optional RS-232/RS-485; COM3–COM6 are RS-232)
    GPIO8× GPIO (providing digital input and output)
    CMOS1× CMOS Clear button (can clear BIOS settings and restore to factory default state)
    Video Output1× HDMI
    Audio1× Audio/Video Combination Interface
    Watchdog255-level programmable seconds/minute, supports timeout interrupts or system reset
    SpeakerUp to 2× 8Ω 2W

    Expansion & Storage

    Expansion & Storage specifications for HyperCore IPC S Series
    SlotSpecification
    Mini PCIe1× Mini PCI Express socket for 4G cellular module, with SIM socket
    M.2 Key E1× M.2 2230 Key E socket for Wi-Fi /Bluetooth module
    M.2 Key M1× M.2 2280 Key M socket for NVMe/SATA SSD
    SO-DIMM1× DDR3/DDR3L/DDR4 SO-DIMM RAM

    Power & Control

    Power & Control specifications for HyperCore IPC S Series
    ParameterSpecifications
    Power Input1× 2-PIN Phoenix terminal, support 12V standard input, optional 9–36V wide voltage input
    Buttons1× Push button switch with indicator light

    Mechanical

    Mechanical specifications for HyperCore IPC S Series
    ParameterSpecification
    MountingIntegrated Wall Mounting Bracket
    EnclosureRugged Aluminium Alloy
    InstallationSupports VESA installation /embedded panel installation

    Environmental

    Environmental specifications for HyperCore IPC S Series
    ParameterSpecification
    Operating Temperature-5°C to +60°C
    Humidity5% – 95% non-condensing
    Storage Temperature-20°C to +75°C

    Package Contents & Accessories

    Package Contents & Accessories specifications for HyperCore IPC S Series
    Packing List
    Main UnitHyperCore M300
    Terminal ConnectorDFMC 1,5/7-ST-3,5 Phoenix Terminal
    MountingScrews for Integrated Wall-Mount Brackets
    Standard Accessories
    Power AdapterMeanwell GST 90W AC-DC Power Adaptor (12V, 7.5A)
    Power Cable
    • 1. EU1-MC13 1.8M Universal Power Cable
    • 2. DC Plug P1MF to Locking Phoenix-2 Female converter
    Optional Accessories
    Wi‑Fi Module
    • 1. Wireless AW-CB375NF NIC, Dual-Band Wi-Fi 5, BT 5.0
    • 2. Wireless AX210 NIC, Gigabit Tri-Band Wi-Fi 6E, BT 5.3
    4G LTE ModuleQuectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module
    Wi‑Fi Antenna2.4GHz - 5GHz 5dBi Omni Wi-Fi Antenna with SMA Connector
    4G Antenna600-6000MHz 5dBi Omni 4G Antenna with SMA Connector
    StorageNVMe/SATA 2280 M.2 SSD 128GB /256GB /512GB /1TB /2TB /4TB
    MemoryDDR3L/DDR3/DDR4 SO-DIMM RAM — 4GB/ 8GB/ 16GB/ 32GB

    Ordering Information

    Ordering Information specifications for HyperCore IPC S Series
    VariantSystem CoreModel NumberAction
    HyperCore IPC S104Intel Celeron J6412HCIPCS104J6412
    HyperCore IPC S104Intel® Core™ i3 7th GenHCIPCS104G7I3
    HyperCore IPC S104Intel® Core™ i5 7th GenHCIPCS104G7I5
    HyperCore IPC S104Intel® Core™ i7 7th GenHCIPCS104G7I7
    HyperCore IPC S104Intel® Core™ i3 10th GenHCIPCS104G10I3
    HyperCore IPC S104Intel® Core™ i5 10th GenHCIPCS104G10I5
    HyperCore IPC S104Intel® Core™ i7 10th GenHCIPCS104G10I7
    HyperCore IPC S104Intel® Core™ i3 12th GenHCIPCS104G12I3
    HyperCore IPC S104Intel® Core™ i5 12th GenHCIPCS104G12I5
    HyperCore IPC S104Intel® Core™ i7 12th GenHCIPCS104G12I7
    HyperCore IPC S121Intel Celeron J6412HCIPCS121J6412
    HyperCore IPC S121Intel® Core™ i3 7th GenHCIPCS121G7I3
    HyperCore IPC S121Intel® Core™ i5 7th GenHCIPCS121G7I5
    HyperCore IPC S121Intel® Core™ i7 7th GenHCIPCS121G7I7
    HyperCore IPC S121Intel® Core™ i3 10th GenHCIPCS121G10I3
    HyperCore IPC S121Intel® Core™ i5 10th GenHCIPCS121G10I5
    HyperCore IPC S121Intel® Core™ i7 10th GenHCIPCS121G10I7
    HyperCore IPC S121Intel® Core™ i3 12th GenHCIPCS121G12I3
    HyperCore IPC S121Intel® Core™ i5 12th GenHCIPCS121G12I5
    HyperCore IPC S121Intel® Core™ i7 12th GenHCIPCS121G12I7
    HyperCore IPC S150Intel Celeron J6412HCIPCS150J6412
    HyperCore IPC S150Intel® Core™ i3 7th GenHCIPCS150G7I3
    HyperCore IPC S150Intel® Core™ i5 7th GenHCIPCS150G7I5
    HyperCore IPC S150Intel® Core™ i7 7th GenHCIPCS150G7I7
    HyperCore IPC S150Intel® Core™ i3 10th GenHCIPCS150G10I3
    HyperCore IPC S150Intel® Core™ i5 10th GenHCIPCS150G10I5
    HyperCore IPC S150Intel® Core™ i7 10th GenHCIPCS150G10I7
    HyperCore IPC S150Intel® Core™ i3 12th GenHCIPCS150G12I3
    HyperCore IPC S150Intel® Core™ i5 12th GenHCIPCS150G12I5
    HyperCore IPC S150Intel® Core™ i7 12th GenHCIPCS150G12I7
    HyperCore IPC S170Intel Celeron J6412HCIPCS170J6412
    HyperCore IPC S170Intel® Core™ i3 7th GenHCIPCS170G7I3
    HyperCore IPC S170Intel® Core™ i5 7th GenHCIPCS170G7I5
    HyperCore IPC S170Intel® Core™ i7 7th GenHCIPCS170G7I7
    HyperCore IPC S170Intel® Core™ i3 10th GenHCIPCS170G10I3
    HyperCore IPC S170Intel® Core™ i5 10th GenHCIPCS170G10I5
    HyperCore IPC S170Intel® Core™ i7 10th GenHCIPCS170G10I7
    HyperCore IPC S170Intel® Core™ i3 12th GenHCIPCS170G12I3
    HyperCore IPC S170Intel® Core™ i5 12th GenHCIPCS170G12I5
    HyperCore IPC S170Intel® Core™ i7 12th GenHCIPCS170G12I7
    HyperCore IPC S190Intel Celeron J6412HCIPCS190J6412
    HyperCore IPC S190Intel® Core™ i3 7th GenHCIPCS190G7I3
    HyperCore IPC S190Intel® Core™ i5 7th GenHCIPCS190G7I5
    HyperCore IPC S190Intel® Core™ i7 7th GenHCIPCS190G7I7
    HyperCore IPC S190Intel® Core™ i3 10th GenHCIPCS190G10I3
    HyperCore IPC S190Intel® Core™ i5 10th GenHCIPCS190G10I5
    HyperCore IPC S190Intel® Core™ i5 10th GenHCIPCS190G10I7
    HyperCore IPC S190Intel® Core™ i3 12th GenHCIPCS190G12I3
    HyperCore IPC S190Intel® Core™ i5 12th GenHCIPCS190G12I5
    HyperCore IPC S190Intel® Core™ i7 12th GenHCIPCS190G12I7
