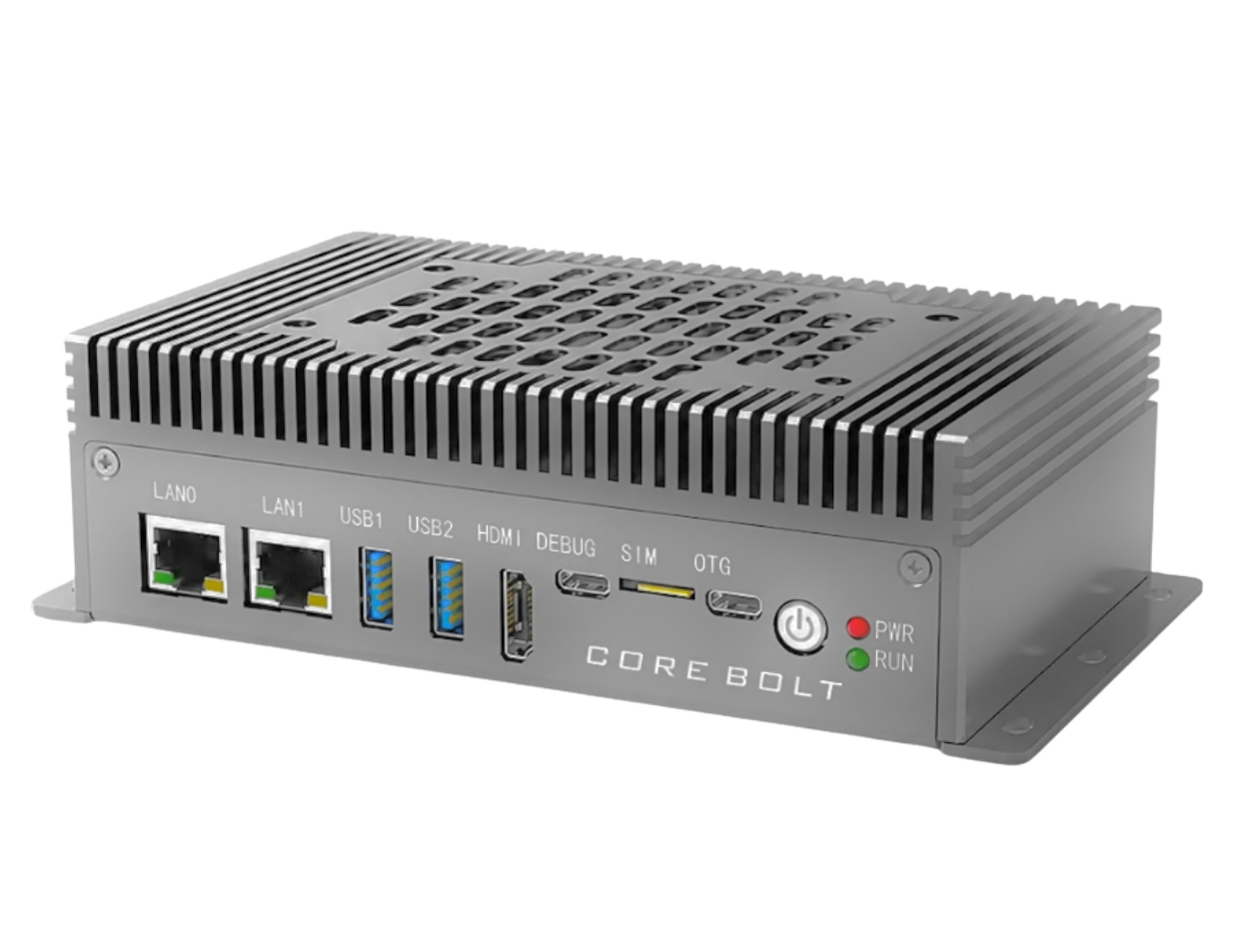

HyperEdge M300F
HyperEdge M300F is a rugged industrial AI edge computer powered by NVIDIA Jetson Orin Nano and Orin NX modules, delivering up to 157 TOPS of AI performance for advanced edge computing applications. Designed for industrial automation, autonomous mobile robots, machine vision, intelligent inspection, and smart transportation, it enables real-time AI inference and data-driven decision-making at the edge. With extensive industrial connectivity and flexible integration capabilities, it provides a reliable platform for deploying AI-powered systems in demanding industrial environments.
Built For Demanding
Applications
The HyperEdge M300F is engineered for high-performance AI inference and industrial edge computing in demanding environments.
VIDEO ANALYTICS
AUTONOMOUS MOBILE ROBOTS
INDUSTRIAL AUTOMATION
INDUSTRIAL INSPECTION
MACHINE VISION
SMART TRANSPORTATION
Specifications
Technical Specifications
Computer Module — Nvidia Jetson Orin Nx
| Parameter | Orin Nx 8gb Variant | Orin Nx 16gb Variant |
|---|---|---|
| AI Performance | 70 TOPS (Super Mode:117 TOPS) | 100 TOPS (Super Mode:157 TOPS) |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
| CPU | 6 core Arm® Cortex® A78AE v8.2 64bit (1.5MB L2 + 4MB L3) | 8 core Arm® Cortex® A78AE v8.2 64bit (2MB L2 + 4MB L3) |
| Memory | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Video Encode | 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 | |
| Video Decode | 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 | |
| eMMC | Supports external NVMe | |
Computer — Nvidia Jetson Orin Nano
| Parameter | ORIN Nano 4GB VARIANT | ORIN Nano 8GB VARIANT |
|---|---|---|
| AI Performance | 20 TOPS (Super Mode:34 TOPS) | 40 TOPS (Super Mode:67 TOPS) |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3) | |
| Memory | 4GB 64bit LPDDR5 34GB/s | 8GB 128bit LPDDR5 68GB/s |
| Video Encode | 1080p30 supported via CPU cores | |
| Video Decode | 1 ×4K60 | 2× 4K30 5× 1080p60 | 11× 1080p30 | |
| eMMC | Supports external NVMe | |

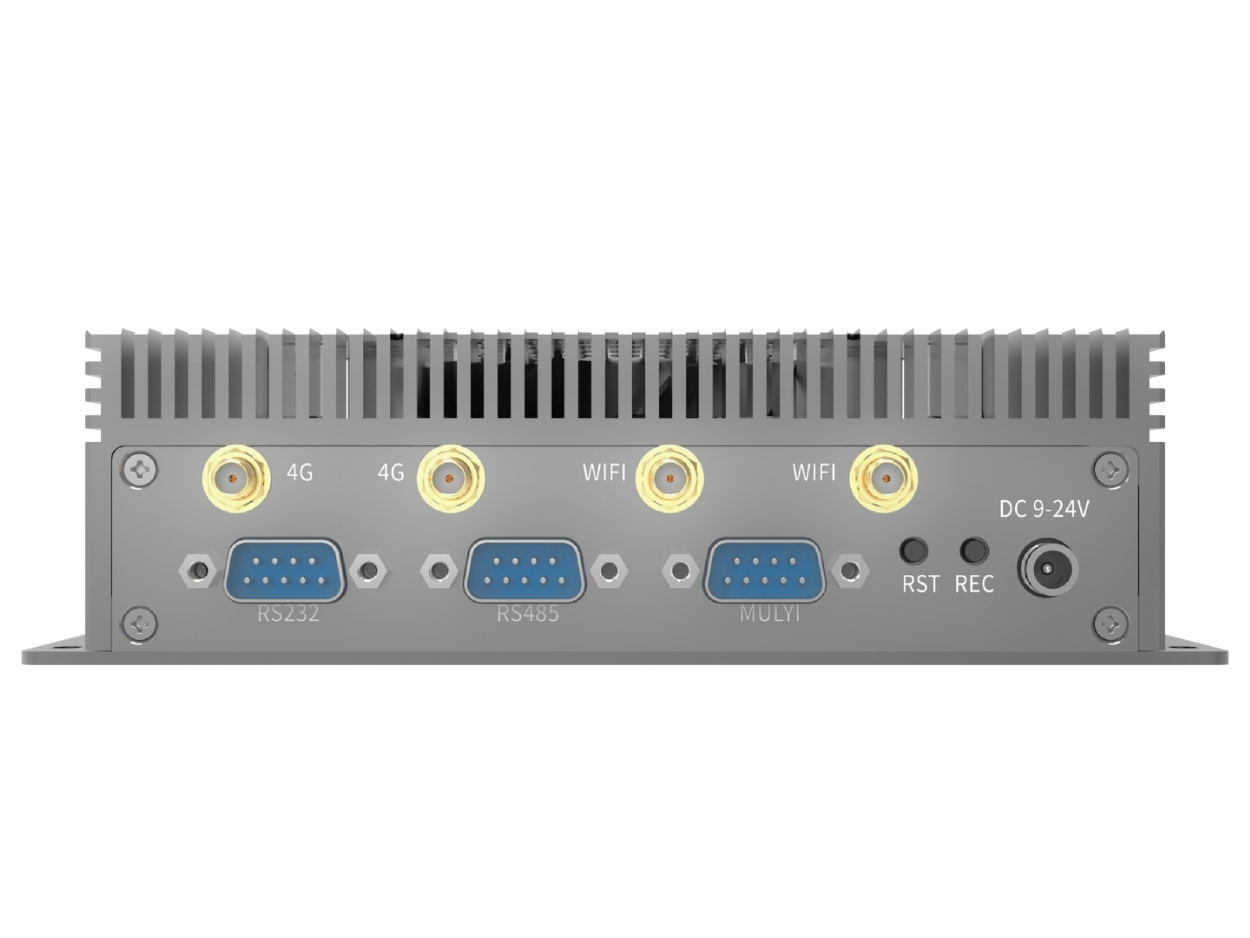

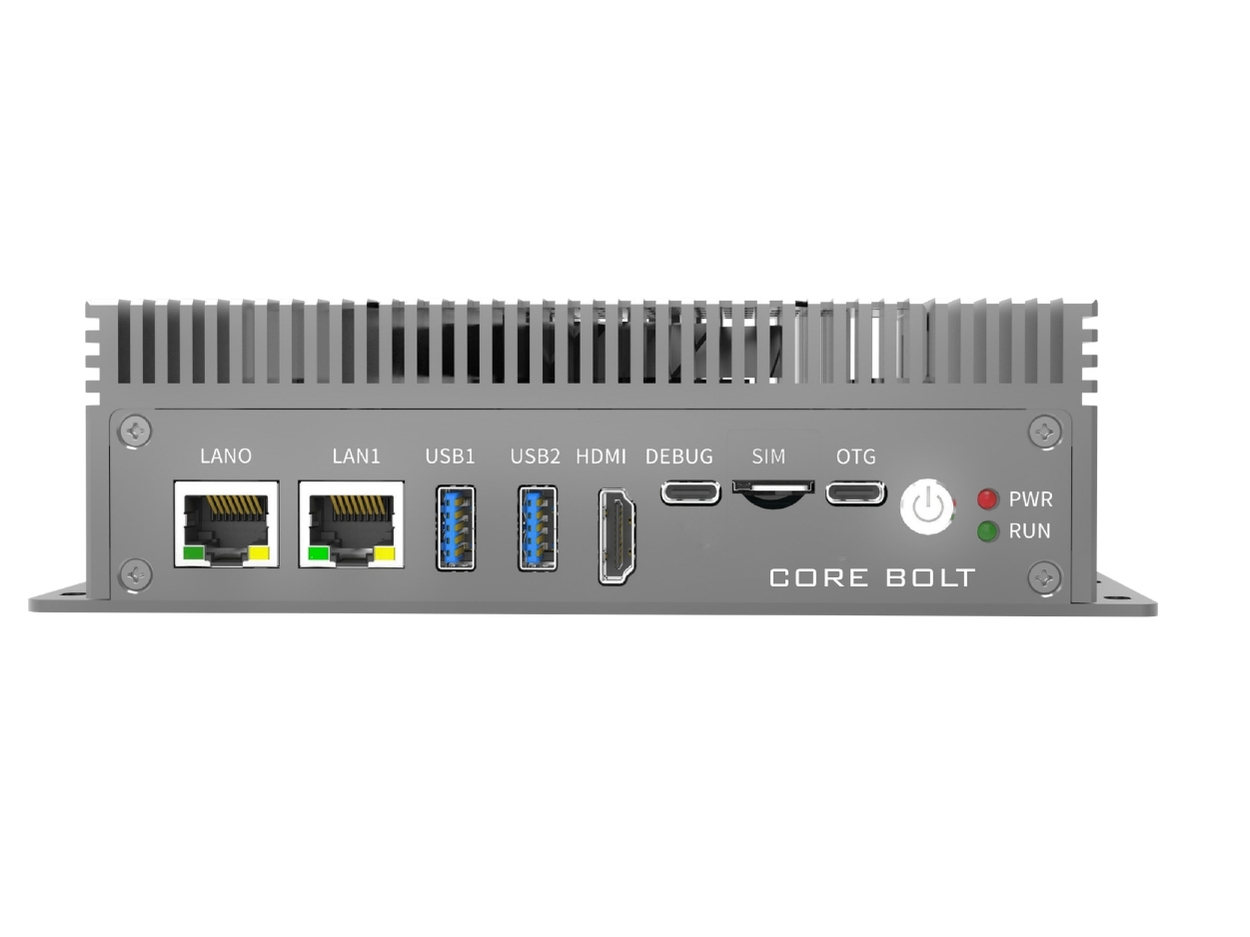

I/O Interfaces
| Interface | Specification |
|---|---|
| Ethernet | 2 x RJ45 Gigabit Ethernet port with independent IP, Support PoE (optional) |
| USB | 2x USB 3.2 Type-A, 1x Type-C Debug |
| Serial Ports | 1x RS-232(DB9), 1x RS-485(DB9), 1× CAN-FD (DB9) |
| GPIO | 4x GPIO(3.3V@1mA) (DB9) |
| USB OTG | 1x Type-C OTG |
| RTC | 1× Real-Time Clock |
| Video Output | 1× HDMI |
Expansion & Storage
| Slot | Specification |
|---|---|
| Mini PCIe | 1x Mini PCI Express socket for 4G cellular module, with internal SIM socket |
| M.2 Key E | 1× M.2 2230 Key E socket for Wi-Fi/ Bluetooth module |
| M.2 Key M | 1× M.2 2280 Key M socket for NVMe SSD |
Power & Control
| Parameter | Specification |
|---|---|
| Power Input | DC Barrel Connector, 9–24 VDC |
| Buttons | 3× buttons — Power(PWR), Recovery (REC) and Reset (RST) |
| Indicators | 2× LED indicators — Run and Power status |
Mechanical
| Parameter | Specification |
|---|---|
| Dimensions | 161mm × 100mm × 50mm |
| Mounting | Wall Mount |
| Enclosure | Rugged Aluminum Alloy |
Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +70°C--Super Mode: -20°C to +60°C (Orin NX) -20°C to +70°C (Orin Nano) |
| Cooling | Active Fan Cooling |
| Humidity | 5%–95% Non-Condensing |
Package Contents & Accessories
| Packing List | |
|---|---|
| Main Unit | HyperEdgee M300F |
| Mounting | Wall Mount assembly with screws |
| Standard Accessories | |
| Power Adapter | MeanWell GST 90W AC-DC Power Adaptor (12VDC/7.5A) |
| Power Cable | EU1-MC13 1.8M Universal Power Cable |
| Optional Accessories | |
| Wi‑Fi Module | Wireless AW-CB375NF NIC, Dual-band Wi-Fi 5, BT 5.0 |
| 4G LTE Module | Quectel EG25-G 4G LTE Cat 4 Global-Band Mini PCIe Module |
| Wi‑Fi Antenna | 2.4 GHz - 5 GHz, 5 dBi Omni Wi-Fi Antenna with SMA connector |
| 4G Antenna | 600–6000 MHz, 5 dBi Omni 4G Antenna with SMA connector |
| Storage | Customizable with 128GB, 256GB, 512GB, 1TB, 2TB, and 4TB capacities |
Ordering Information
| System Core | Model Number | Action |
|---|---|---|
| NVIDIA Jetson Orin Nano 4GB | HEM300FONO4G | |
| NVIDIA Jetson Orin Nano 8GB | HEM300FONO8G | |
| NVIDIA Jetson Orin NX 8GB | HEM300FONX8G | |
| NVIDIA Jetson Orin NX 16GB | HEM300FONX16G |
Overview
HyperEdge M300F Industrial AI Edge Computer for Machine Vision & Robotics
The HyperEdge M300F is a high-performance AI Edge Computer designed for industrial automation, machine vision, robotics, smart manufacturing, and intelligent edge computing applications. Its advanced AI computing architecture delivers powerful data processing, real-time analytics, and accelerated AI inference for demanding industrial environments. Built for applications requiring computer vision, object detection, AI analytics, quality inspection, predictive maintenance, and intelligent automation, the HyperEdge M300F provides reliable performance and scalable edge AI capabilities. It enables organizations to process and analyze data locally, reducing latency while improving operational efficiency and decision-making. The HyperEdge M300F AI Edge Computer is well suited for factory automation, robotic systems, smart surveillance, autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and AI-powered industrial inspection applications. Its powerful computing capabilities support real-time monitoring, machine learning workloads, and intelligent process optimization. With industrial-grade reliability, advanced AI processing performance, and flexible deployment capabilities, the HyperEdge M300F helps accelerate digital transformation and enables next-generation intelligent automation across a wide range of industrial and edge AI applications.
