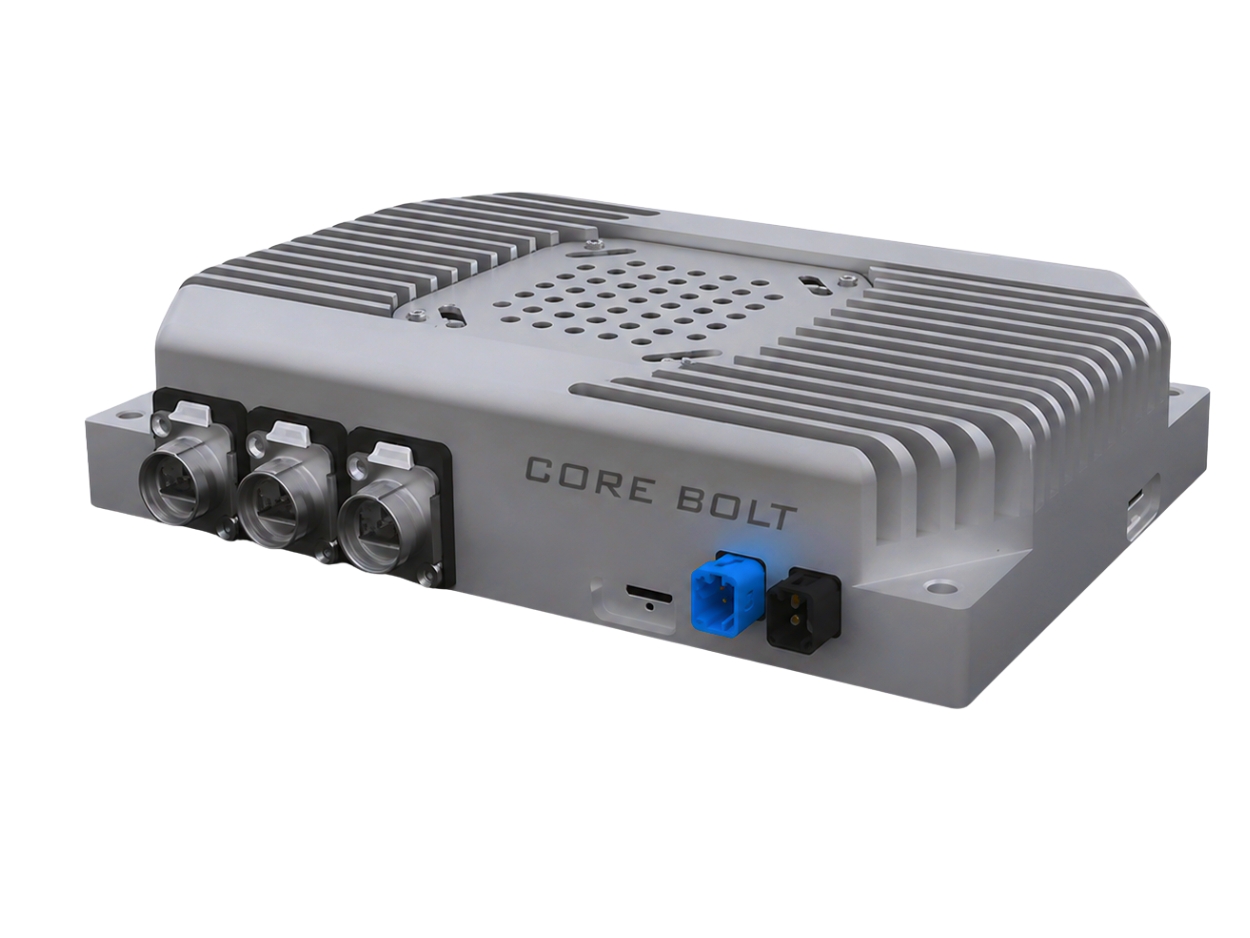

    HyperEdge 900DR

    HyperEdge 900DR is a high-performance AI edge computer that combines TI TDA4VM real-time processing with NVIDIA Jetson AGX Orin AI acceleration, delivering up to 283 TOPS of computing performance for autonomous and intelligent systems. Designed for autonomous vehicles, intelligent transportation, construction machinery, agriculture robotics, and port automation, it enables advanced perception, sensor fusion, and real-time decision-making. Its heterogeneous computing architecture uniquely combines deterministic control with powerful AI processing for next-generation autonomous applications.

    Compatible Modules

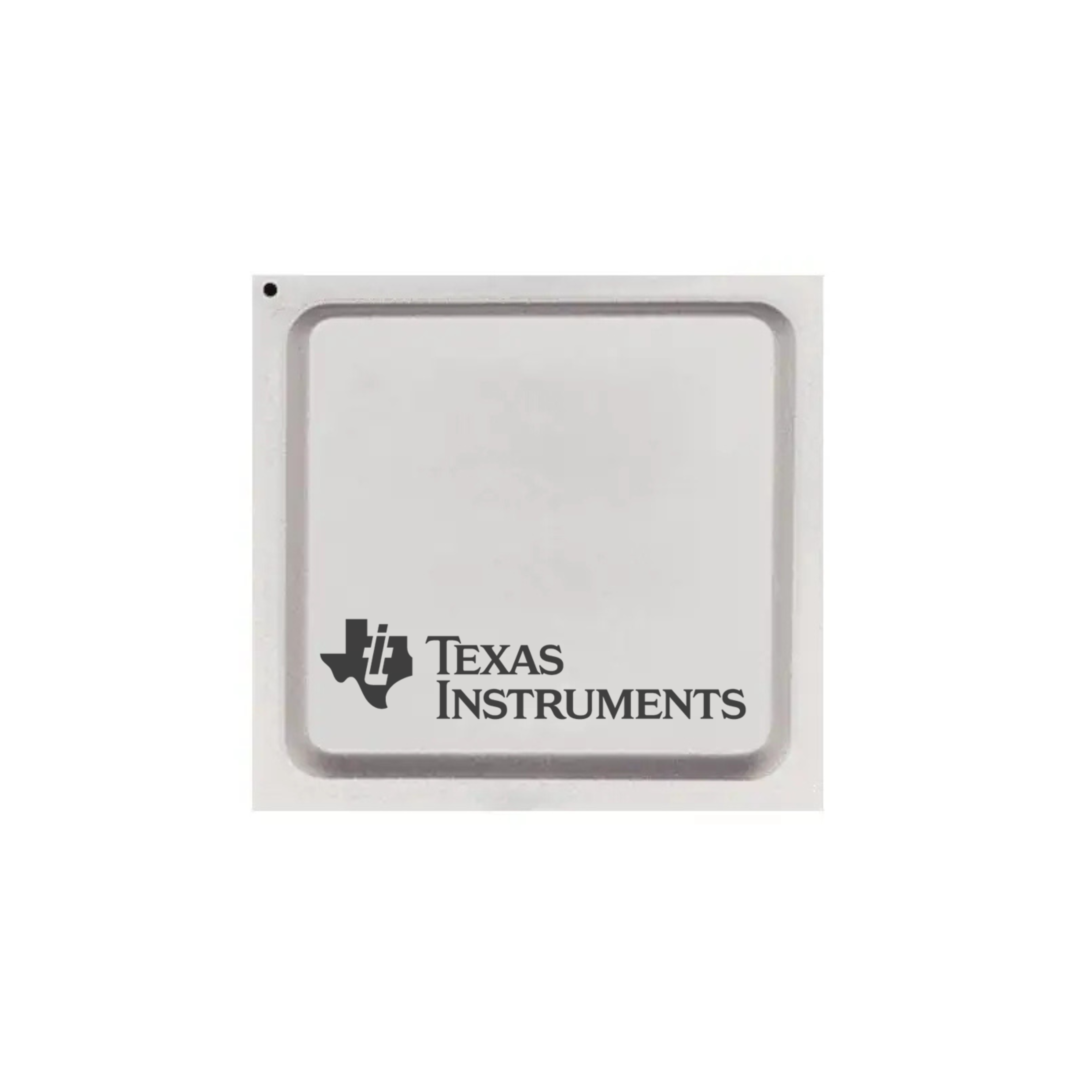

    TDA4VM
    TDA4VM
    AGX Orin SOM
    AGX Orin SOM

    Built For Demanding
    Applications

    The HyperEdge 900DR is engineered for heterogeneous AI computing, autonomous systems, and real-time intelligent control

    UNMANNED GROUND VEHICLES

    UNMANNED GROUND VEHICLES

    CONSTRUCTION MACHINERY

    CONSTRUCTION MACHINERY

    AUTONOMOUS PORT VEHICLES

    AUTONOMOUS PORT VEHICLES

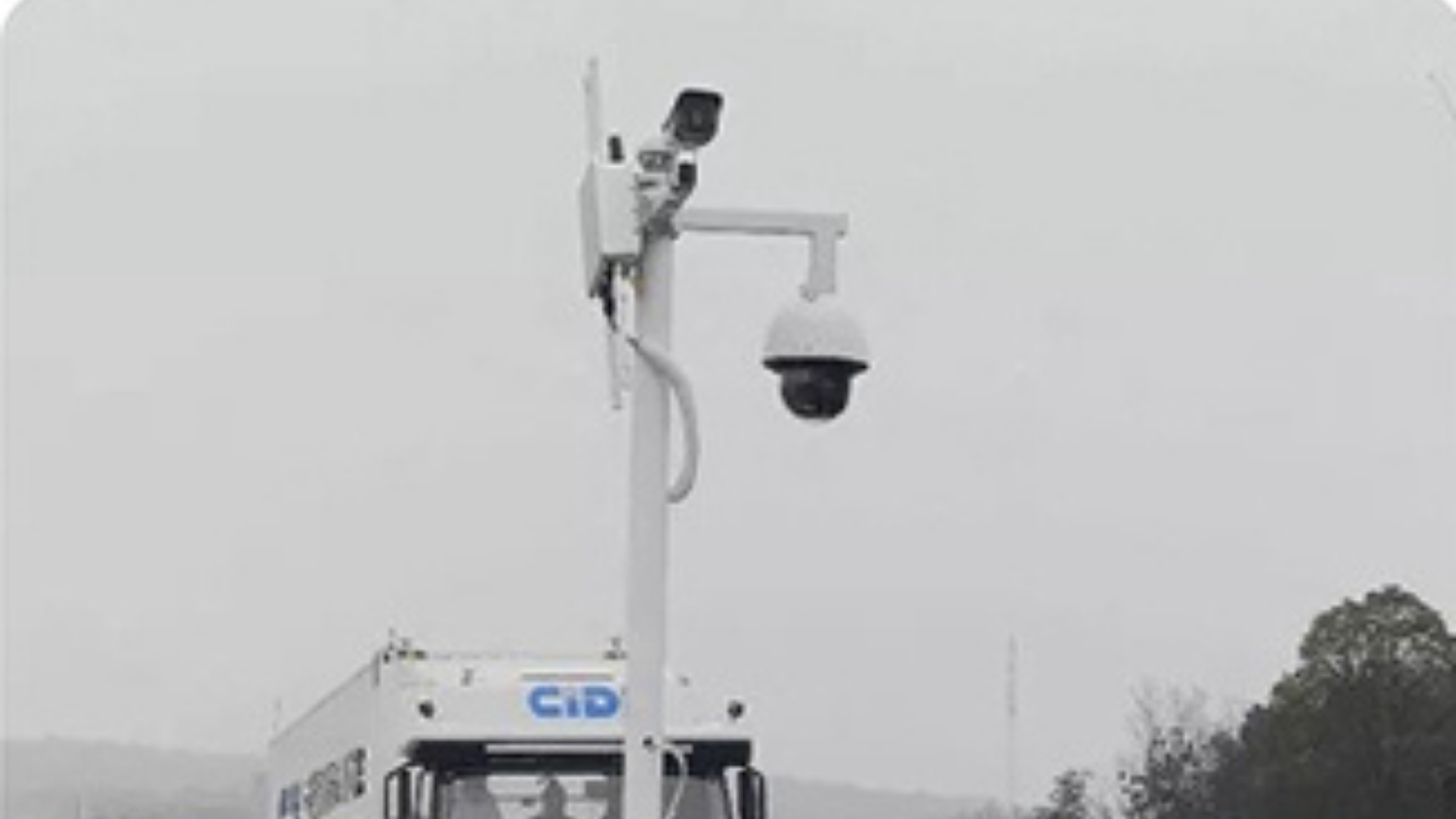

    V2X EQUIPMENT

    V2X EQUIPMENT

    INTELLIGENT TRANSPORTATION

    INTELLIGENT TRANSPORTATION

    AGRICULTURE ROBOTICS

    AGRICULTURE ROBOTICS

    Specifications

    Technical Specifications

    Compute Module — Tda4vm + Nvidia Jetson Agx Orin

    Compute Module — Tda4vm + Nvidia Jetson Agx Orin specifications for HyperEdge 900DR
    ParameterTda4vm + Agx Orin 32 Gb VariantTda4vm + Agx Orin 64 Gb Variant
    AI Performance8 TOPS (TDA4) + 200 TOPS8 TOPS (TDA4) + 275 TOPS
    GPUGE8430 (TDA4) + 1792-core NVIDIA Ampere GPU with 56 Tensor CoresGE8430 (TDA4) + 2048-core NVIDIA Ampere GPU with 64 Tensor Cores
    CPU2-core A72+ 6-core R5 (TDA4) + 8-core Arm Cortex-A78AE v8.2 64-bit (2 MB L2 + 4 MB L3)2-core A72+ 6-core R5 (TDA4) + 12-core Arm Cortex-A78AE v8.2 64-bit (3 MB L2 + 6 MB L3)
    Memory32 GB 256-bit LPDDR5 204.8 GB/s64 GB 256-bit LPDDR5 204.8 GB/s
    DSP2-core C66x (1.35GHz) (TDA4) + C7x (1GHz)
    Video Encode{1× 4K60, 3× 4K30, 6× 1080p60, 12× 1080p30} H.265, {AV1} H.264{2× 4K60, 4× 4K30, 8× 1080p60, 16× 1080p30} H.265, {AV1} H.264
    Video Decode{1× 8K30, 2× 4K60, 4× 4K30, 9× 1080p60, 18× 1080p30} H.265, {AV1,VP} H.264{1× 8K30, 3× 4K60, 7× 4K30, 11× 1080p60, 22× 1080p30} H.265, {AV1,VP9} H.264
    CAN Module16 (supporting CAN-FD) (TDA4)
    DL Accelerator2× NVDIA v2.0
    eMMC64 GB eMMC 5.1 on SOM

    I/O Interfaces

    I/O Interfaces specifications for HyperEdge 900DR
    InterfaceSpecification
    Ethernet3x Gigabit Industrial Ethernet port
    USB1x USB 2.0 Type-A, 1x USB 3.0 Type-A
    Camera INTERFACE 2× GMSL2 4in1 Camera Connectors (capable of connecting cameras with 8 channels of GMSL2/GMSL1 protocol)
    Network4× Vehicle Ethernet (900DRV Variant Only)
    Sync I/O_A
    • 1. 6× CAN/CAN-FD interface
    • 2. 4× RS-232interface
    • 3. 4× Analog Input
    • 4. 4× Digital Input
    • 5. 4× Digital Output
    • 6. 4× High Side Output (24V, 1.3A)
    Sync I/O_B
    • 1. 2× CAN/CAN-FD interface
    • 2. 2× RS-232 interface (debugging)
    • 3. 1× RS-422 interface (optional)
    • 4. 1× Digital Output(12V)
    • 5. 2× Bidirectional GPIO interface (12V)
    • 6. 1× ACC Ignition Signal Detection
    • 7. 2× Voltage Output (12V/5V, maximum 0.8A)
    TF TF Card Slot (debugging)
    Video Output 1× HDMI

    Expansion & Storage

    Expansion & Storage specifications for HyperEdge 900DR
    SlotSpecification
    Mini PCIe1x Mini PCI Express socket for 4G cellular module, with SIM socket
    M.2 Key B1× M.2 3052 Key B socket for 5G cellular module, with SIM socket
    M.2 Key E1× M.2 2230 Key E socket for Wi-Fi/ Bluetooth module
    M.2 Key M1× M.2 2280 Key M socket for NVMe SSD

    Power & Control

    Power & Control specifications for HyperEdge 900DR
    ParameterSpecifications
    Power Input9–36 VDC
    Power InterfaceDC Barrel Connector interface

    Mechanical

    Mechanical specifications for HyperEdge 900DR
    MechanicalSpecifications
    Dimensions250.5mm × 200.2mm × 58.3mm (including interface)
    MountingIntegrated Wall Mount Brackets
    Enclosure Rugged Aluminium Alloy with IP5X Protection Grade

    Environmental

    Environmental specifications for HyperEdge 900DR
    EnvironmentalSpecifications
    Operating Temp-40°C to 85°C
    MountingActive Air Cooling with Integrated Heat Sink
    Storage Humidity5% to 95%
    Operating Humidity10% to 90%
    Air pressure 86 kPa to 106 kPa

    Package Contents & Accessories

    Package Contents & Accessories specifications for HyperEdge 900DR
    Packing List
    Main UnitHyperEdge 900DR
    Standard Accessories
    Power AdapterMeanwell GST 120W AC-DC Power Adaptor (20V, 6A)
    Power CordEU1-MC13 1.8M Universal Power cord
    Cables & Connectors
    • 1. Molex 48-Pin 1M Interconnect Harness for TDA4
    • 2. Molex 32-Pin 0.5M Interconnect Harness for AGX Orin
    • 3. FAKRA-Z, 1-to-4 F-F Splitter Cable, 0.5M
    • 4. FAKRA-Z, 1-to-4 F-M Splitter Cable, 0.5M
    • 5. Amphenol 2*2 Plug 0.5m IN-Vehicle Ethernet Cable
    Optional Accessories
    Wi‑Fi ModuleWireless AW-CB375NF NIC, Dual-band Wi-Fi 5, BT 5.0
    4G LTE ModuleQuectel EG25-G 4G LTE Cat 4 Global Band Mini PCIe Module
    5G LTE ModuleQuectel RM520N-GL 5G Sub-6G GHz Global-Band M.2 Module
    Wi-Fi & 4G Antenna2 in 1 Dual Band Wi-Fi & 4G Antenna with Fakra Connector
    Wi-Fi & 5G Antenna5 in 1 Dual Band Wi-Fi & 5G Antenna with Fakra Connector
    StorageCustomizable with 128GB, 256GB, 512GB, 1TB, 2TB, and 4TB capacities

    Ordering Information

    Ordering Information specifications for HyperEdge 900DR
    VariantSystem CoreModel NumberAction
    HyperEdge 900DRTDA4VM + NVIDIA Jetson AGX Orin 32GBHE900DRAGXO32G
    HyperEdge 900DRTDA4VM + NVIDIA Jetson AGX Orin 64GBHE900DRAGXO64G
    HyperEdge 900DRVTDA4VM + NVIDIA Jetson AGX Orin 32GBHE900DRVAGXO32G
    HyperEdge 900DRVTDA4VM + NVIDIA Jetson AGX Orin 64GBHE900DRVAGXO64G
