LIVOX mid-360S
mid-360S is the latest generation of Livox LiDAR for low speed robotics. This new product inherits the cost-effectiveness of the Livox Mid series and delivers 3D perception in 360 degrees. Compact and lightweight, this LiDAR module is easy to install. The Mid-360S is optimized based on the navigation and obstacle avoidance requirements of mobile robots. This allows you to use the LiDAR with algorithms to deliver a wide range of functions such as SLAM and obstacle avoidance.
Specifications
Technical Specifications
Product Features
| Feature | Value |
|---|---|
| FOV | 360° * 59° |
| Detection Range | 40 m @10% reflectivity , 70 m @ 80% reflectivity. |
| @10% Reflectivity | 40m |
| Point Cloud Density | 40-line |

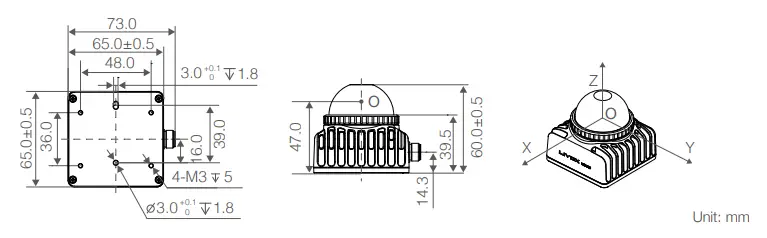

| L x W x H (mm) | 65*65*60mm |
| Weight | Approx. 265g |
| Power Supply Voltage Range | 9-27V DC |
| Operating Temperature | -20°C to +55°C |
| IP Rating | IP67 |
Overview
Livox Mid-360S 3D LiDAR for Robotics, Drones & Autonomous Systems
LIVOX MID-360S (₹1,02,508). The Livox Mid-360S is an advanced 360-degree 3D LiDAR sensor designed for robotics, drones, autonomous navigation, mapping, and intelligent automation applications. Its compact design and advanced sensing capabilities deliver accurate environmental perception, real-time object detection, localization, and high-density point cloud generation for intelligent systems operating in dynamic environments. Built for applications requiring SLAM, obstacle detection, collision avoidance, 3D mapping, and autonomous navigation, the Livox Mid-360S LiDAR provides reliable sensing performance and enhanced situational awareness. Its wide field of view and high-resolution perception capabilities help improve navigation accuracy and operational efficiency. The Livox Mid-360S is well suited for robotic platforms, Autonomous Mobile Robots (AMRs), drones, unmanned systems, warehouse automation, and smart mobility applications. Its advanced perception capabilities support real-time environmental monitoring, path planning, mapping, and intelligent decision-making. With precise spatial awareness, reliable sensing performance, and advanced 3D LiDAR technology, the Livox Mid-360S enables intelligent systems to operate safely and efficiently across a wide range of robotics, drone, and automation applications. Buy the Livox Mid-360S lidar sensor at Rs 1,02,508. Compact 360deg x 59deg 3D lidar for robotics and AMRs. Order online from Core Bolt India today.
