[1MP]-SG1S-OX01F10C-G1G

    Vision Systems & Cameras · Sensing Cameras

    [1MP]-SG1S-OX01F10C-G1G

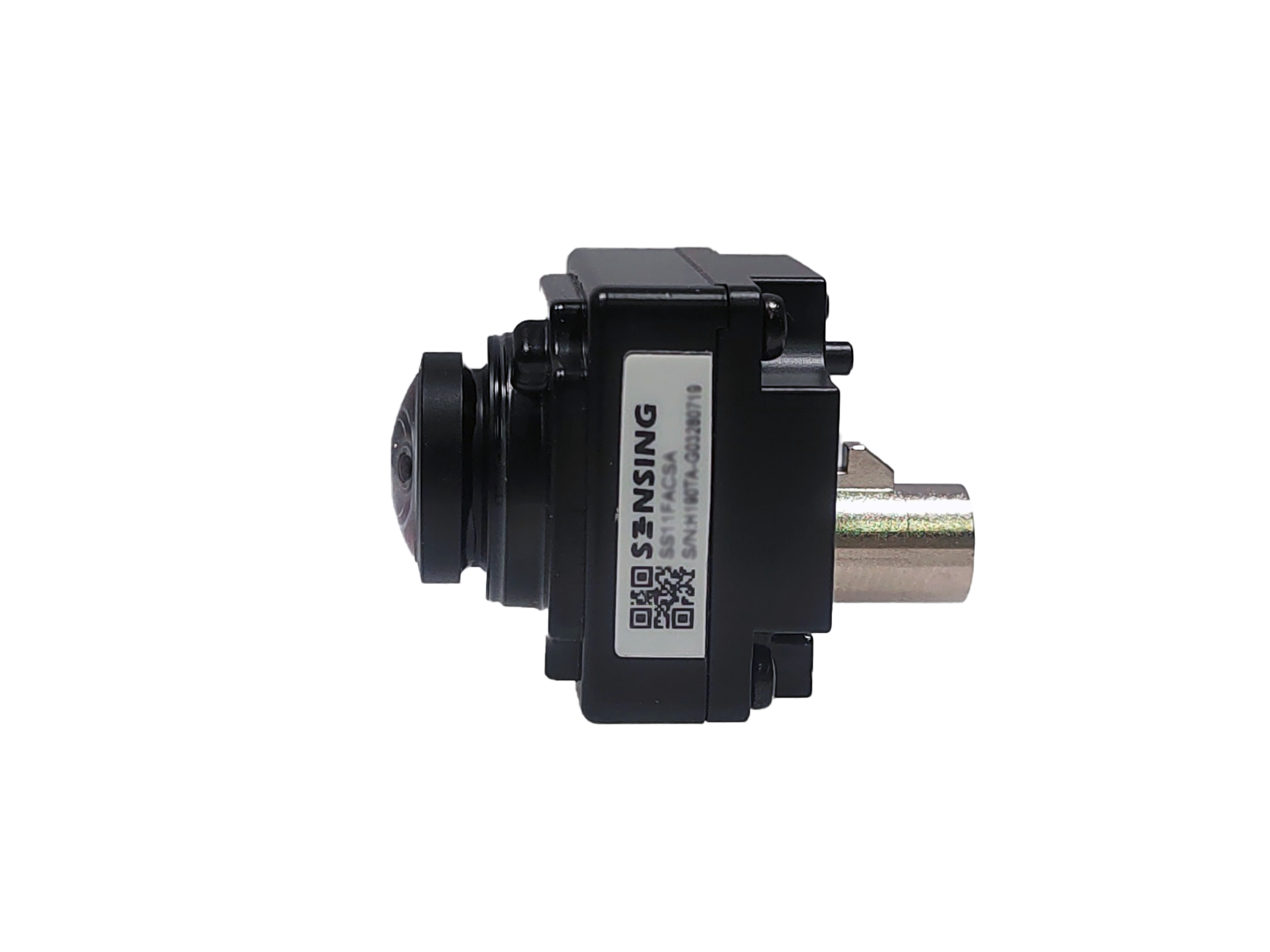

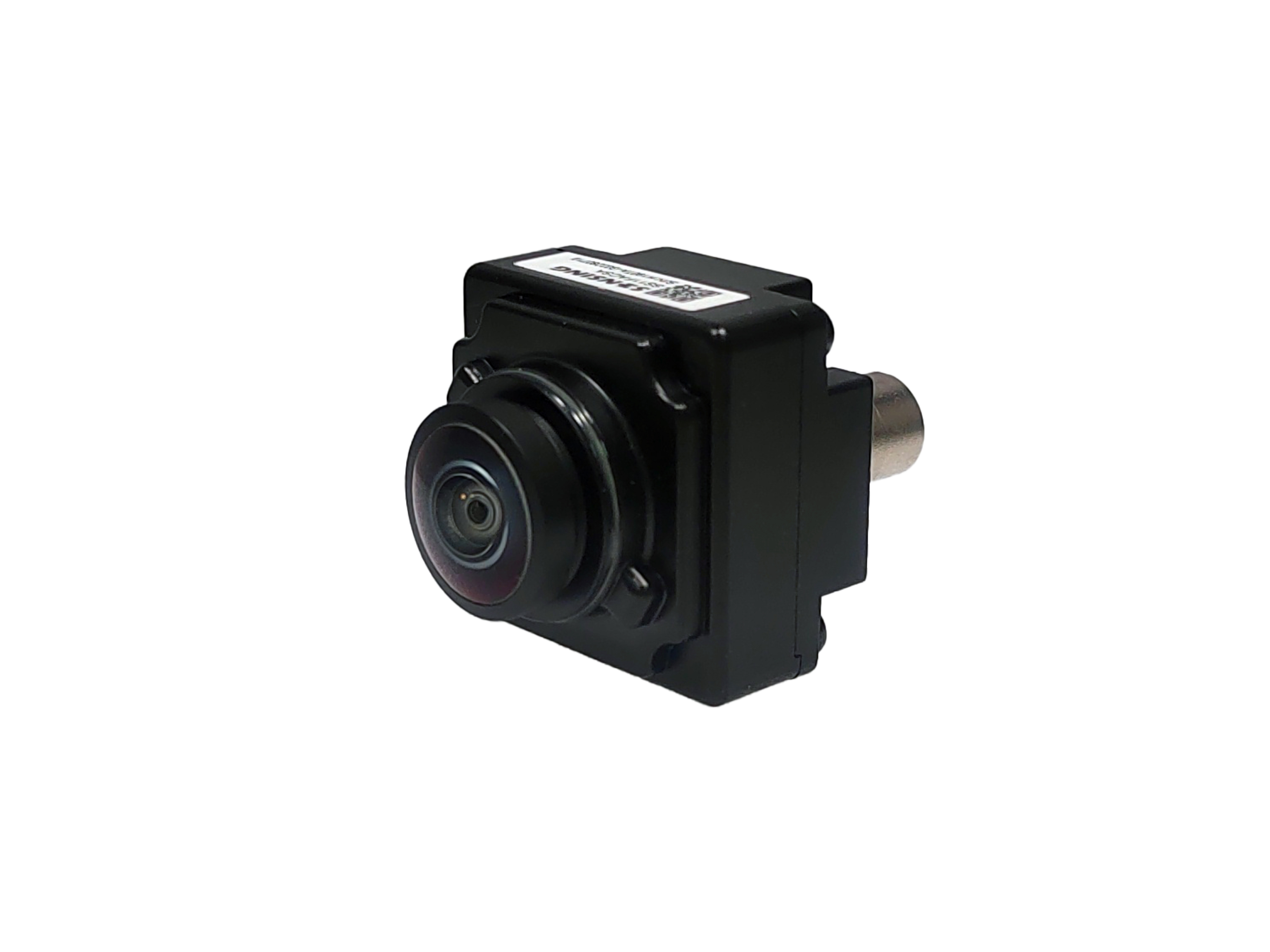

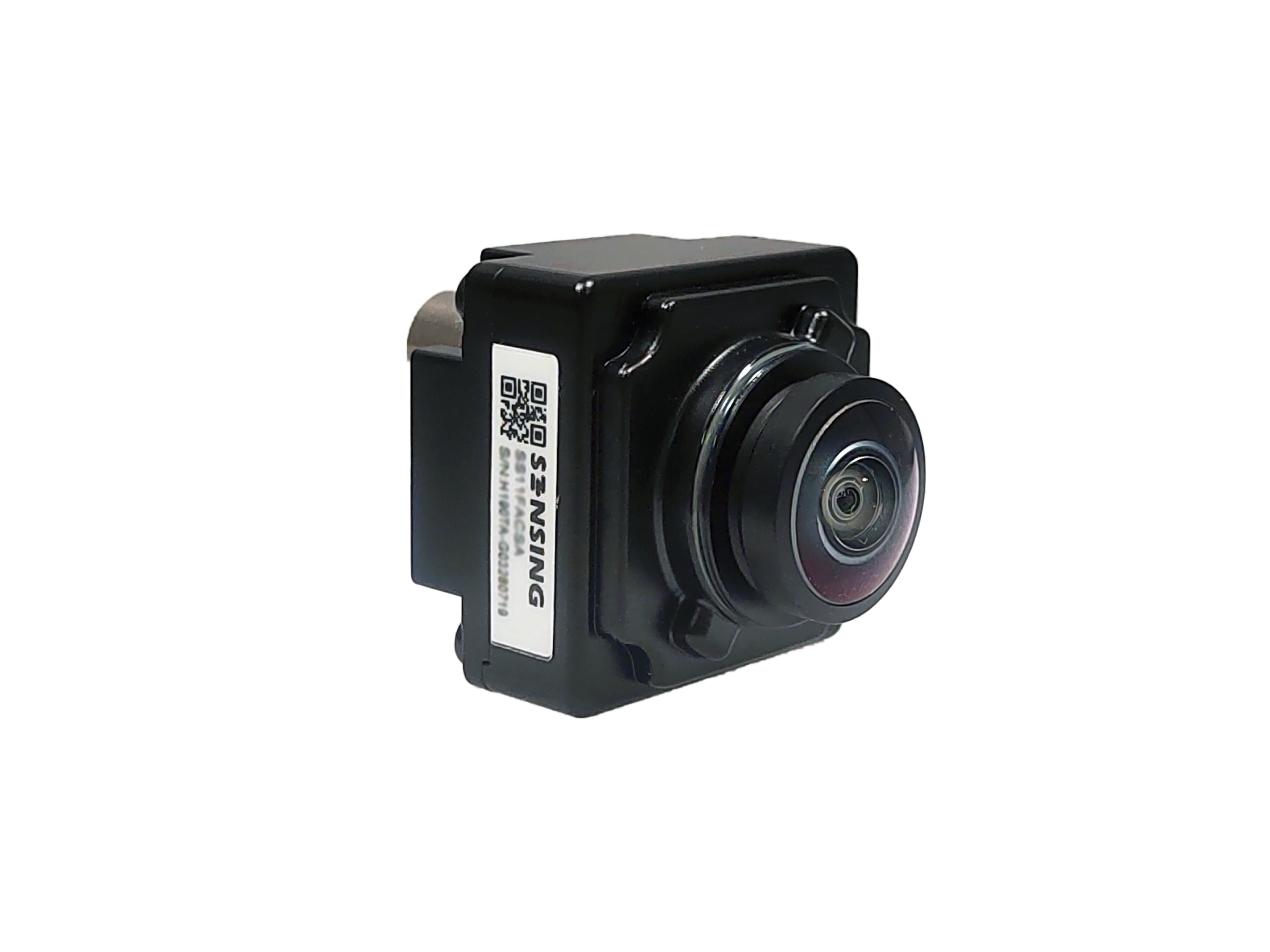

    SG1S-OX01F10C-G1G-Hxxx camera module is equipped with OMNIVISION CMOS image sensor OX01F10 and Maxim GMSL. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure.

    Specifications

    Technical Specifications

    Product Features

    Technical features and specifications for [1MP]-SG1S-OX01F10C-G1G
    FeatureValue
    Resolution1280(H) × 960(V) (Max)
    Frame Rate1280*960@30 fps
    SensorOMNIVISION 1.3MP OX01F10 RGGB
    ISPBuilt-in ISP
    Output dataYUV422, 8-bit
    SerializerMAXIM MAX96701
    Operating Temperature-40°C～+85°C
    Dimensions25 × 25 × 13.9 mm
    Field of View (HFOV)196°
